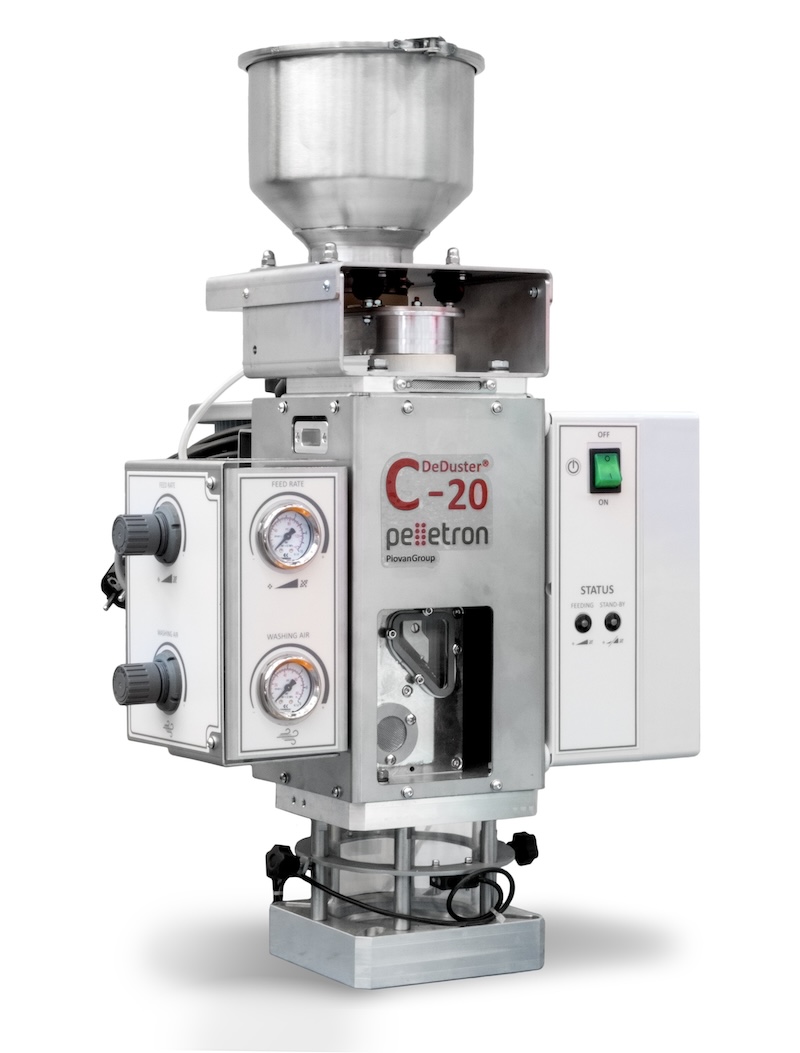

C-20 DeDuster®

C-20 DeDuster

Dust, streamer and angel hair remover
  • No more dust
  • Small, light, efficient
  • Plug & Play
  • Performance you can see

Experience superior material cleaning with the C-20 DeDuster, designed for efficiency and reliability. Its compact design, low maintenance needs, and energy-efficient operation ensure consistent performance, while easy integration into existing systems makes it an ideal solution for enhancing product quality.

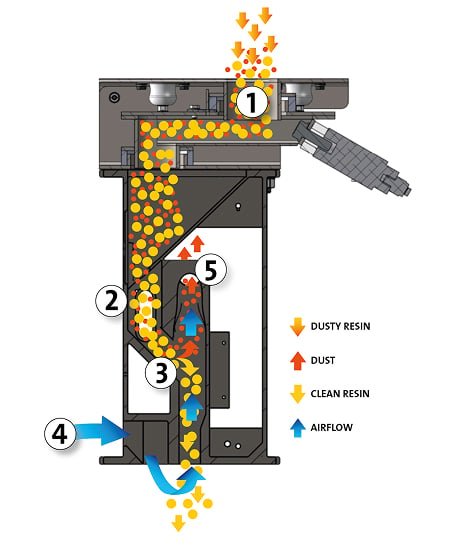

Pelletron C20 Operation

Operating principle

  1. Controlled Feed Zone: The C-20 DeDuster has a vibratory feeder driven by a pneumatic motor that doses the resin into the unit with whatever dust and streamers it contains. A knob for adjusting the resin flow rate is easily accessible on the front of the C-20 DeDuster and the included level sensor stops the resin flow when downstream demand stops.
  2. Ionizing Zone: Compressed air uniformly distributes negative ions from the ion generator to neutralize the static charge that holds dust on the surface of the resin.
  3. Venturi Zone: An efficient compressed air operated vacuum generator creates the counter flow air stream that separates streamers and dust from the falling pellets or regrind.
  4. Air Inlet: The cleaning air is pulled from the atmosphere through a filtered opening on the side of the C-20 DeDuster.
  5. Dust Collector: Unwanted dust and streamers are sent to the attached mini dust collector which features a cyclone separator and cartridge filter for the air before it is released to the atmosphere. The dust collector is easily emptied without needing tools to access the dust drum.

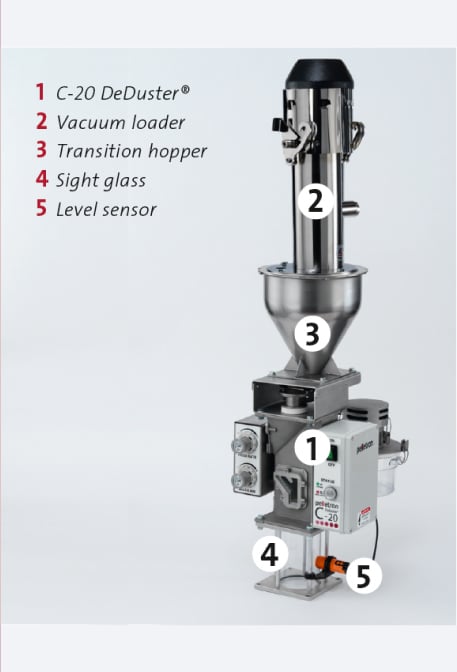

C-20 Deduster Description

Features

  1. The C-20 DeDuster is only 40 lb (18.2 kg) and 13.25”(337 mm) tall. Just plug in the unit to a single-phase power source, connect a W” compressed air line, and position the level sensor on a sight glass below the C-20 DeDuster.
  2. Material is typically fed to the hopper above the C-20 DeDuster by a common vacuum loader with a flapper valve to isolate the conveying vacuum from the C-20 DeDuster. No changes are made to your existing vacuum system control. The C-20 DeDuster features an integrated variable speed feeder on its inlet to dose resin into the cleaning zone at a metered rate.
  3. Turning the feed rate control knob during setup changes resin flow rate for a wide range of applications. The feeder automatically stops the resin flow into the C-20 DeDuster when the level sensor below the C-20 DeDuster detects resin. Of course, the flow is started again when the downstream process starts again and the level sensor does not detect resin anymore.
  4. The maximum allowable temperature of the material that is processed by the C-20 DeDuster is 180° F (82° C) so it is typically mounted to dryer inlets where the material is cooler than that limit. Contact Pelletron about solutions for higher temperature applications.
  5. To see an immediate reduction in your scrap rate, be sure to clean the mold, extruder screw, and replace melt filters after installing the C-20 DeDuster.

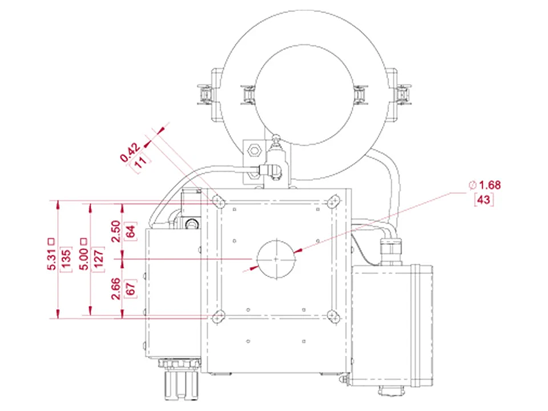

C-20 DeDuster Top View

C-20 DeDuster® Top View

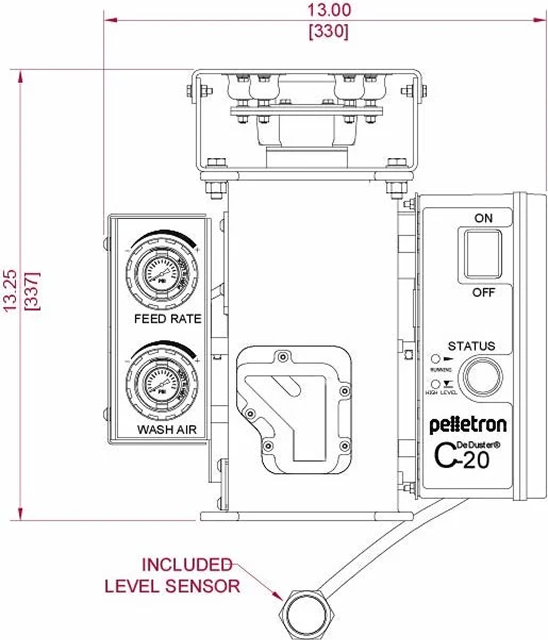

C-20 DeDuster Front View

C-20 DeDuster® Front View

Specifications

Max product temperature

180° F (82°C) Contact Pelletron about solutions for higher temperature requirements.


Flow rate (pellet throughput)

50 lbs/hr at 35 lbs/ft3 [22 kg/hr at 560 Kg/m3]


80 lbs/hr at 56 lbs/ft3 [35 kg/hr at 880 Kg/m3]

Power consumption, full load amps

100 ~ 240 VAC (50/60 Hz) at < 0.5 A, 7.0 FLA

Approximate weight lb (kg)

Installed weight 40 (18.2

Shipping weight 46 (20.9)

Compressed air requirements

10 SCFM (17 Nm3/hr)


90 psig (6 barg) source pressure
